Electrical information
Voltage 12
Kw 3.0
Physical information
H No./teeth 10,11
P Rotation CW
N Gear type DD

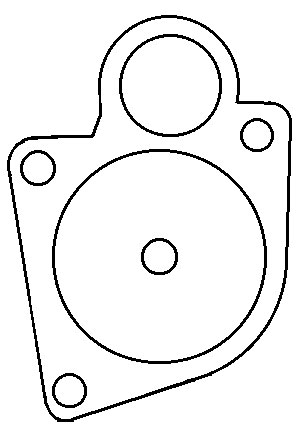

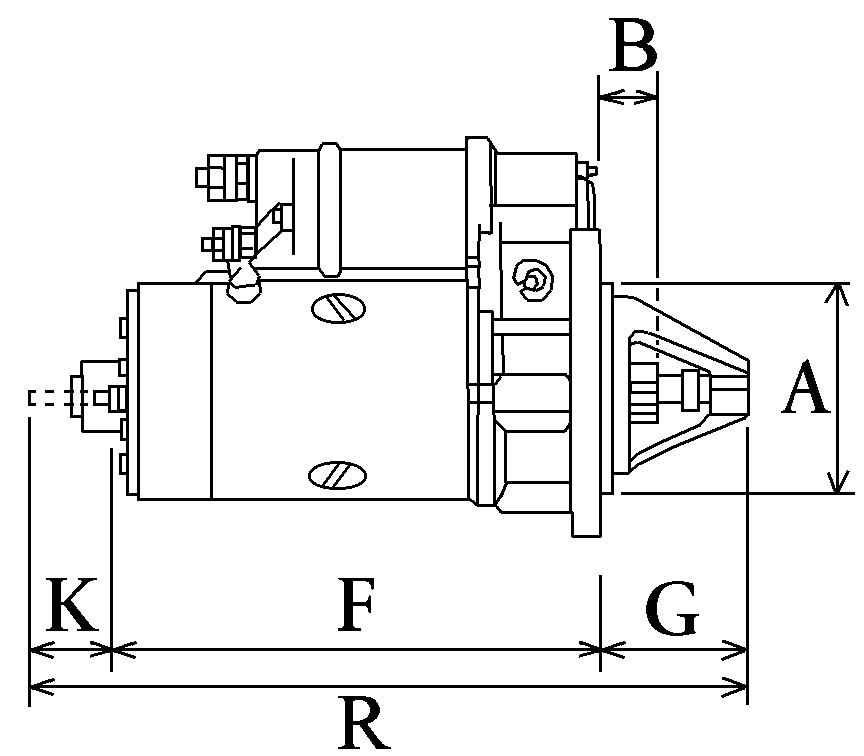

A Mount. flange 89.00
I B+ M10
No./mount. holes 3 (0)
B Drive dist. 48.00

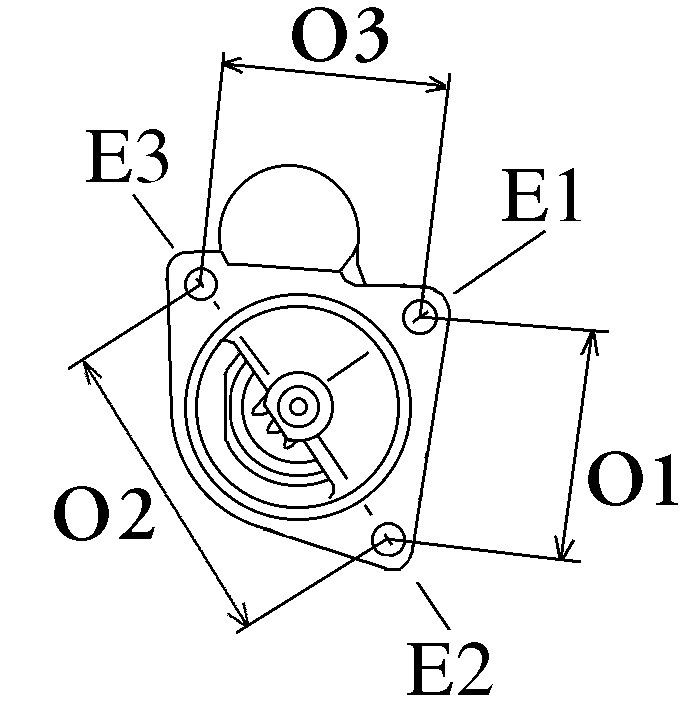

E Mount. holes 10.50
E Mount. hole 2 10.50
E Mount. hole 3 10.50
F Dist./back 227.00
G Dist./front 95.00
M Mount. bracket No
O Dist. mm 89.50
O Dist. 2 127.00
O Dist. 3 89.50
R Total length mm 335.00
110545 | Starter Lucas 12 Volt - 11 Teeth_CARGO
