Electrical information
Voltage 12
Kw 3.6
Physical information
H No./teeth 9
P Rotation CW
N Gear type DD

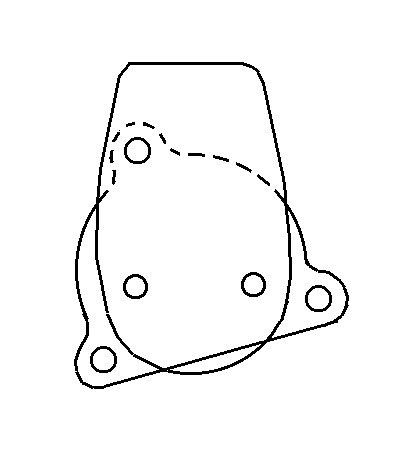

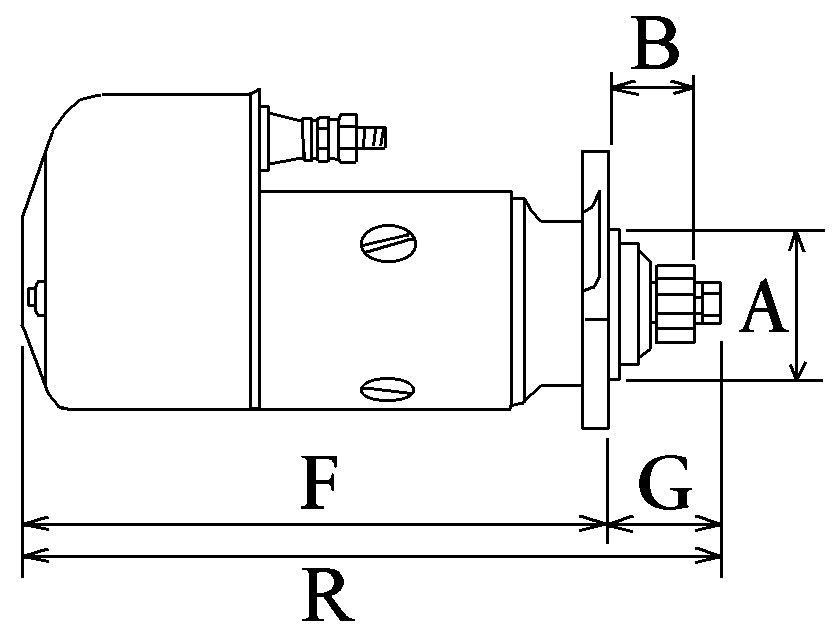

A Mount. flange 92.00
I B+ M10
No./mount. holes 3 (0)
B Drive dist. 47.00

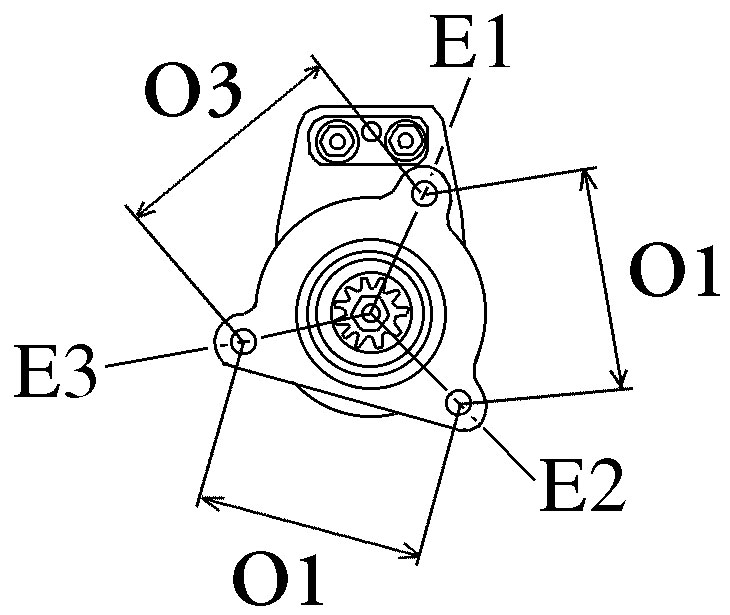

E Mount. holes 13.50
E Mount. hole 2 13.50
E Mount. hole 3 13.50
F Dist./back 318.00
G Dist./front 62.50
S B- M10
M Mount. bracket No
O Dist. mm 127.50
O Dist. 2 127.50
O Dist. 3 127.50
R Total length mm 384.50
110539 | Starter Bosch 12 Volt - 9 Teeth_CARGO
